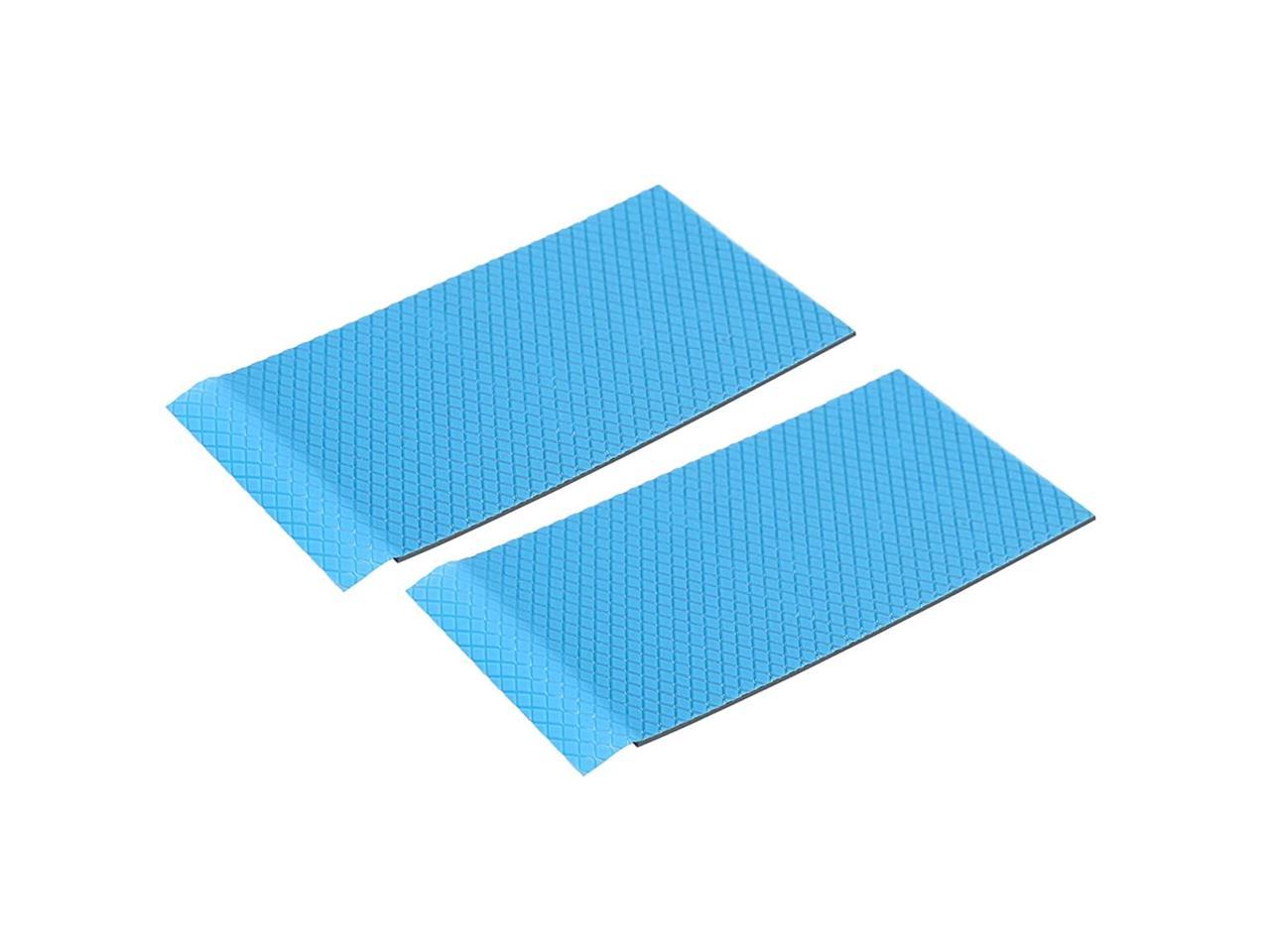

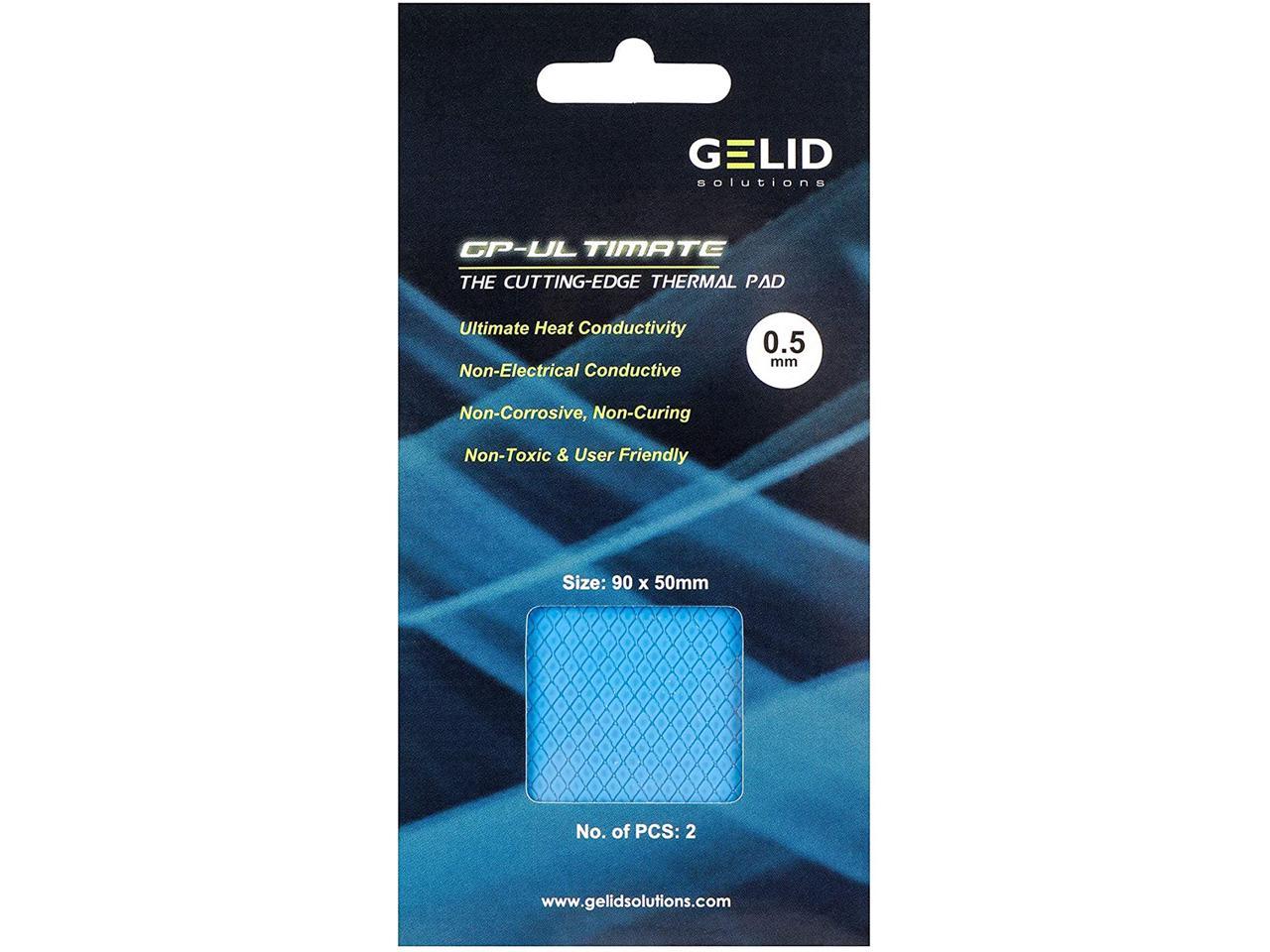

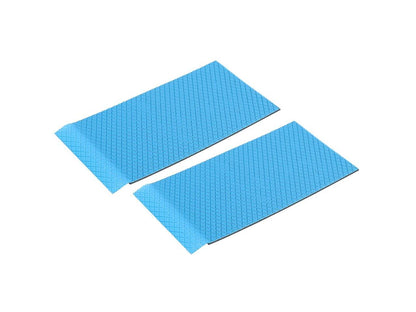

Gelid Solutions GP-Ultimate 15W-Thermal Pad 90x50x0.5mm (2pcs). 2 Pack Model TP-VP04-A

GP-Ultimate 120×20 Thermal Pad Series

The cutting-edge Thermal Pad

Thickness variants:
Single Pack (1pc included): 0.5 mm (TP-GP04-R-A), 1.0mm (TP-GP04-R-B), 1.5mm (TP-GP04-R-C), 2mm (TP-GP04-R-D), 3mm (TP-GP04-R-E)
Value Pack (2pcs included): 0.5mm (TP-VP04-R-A), 1.0mm (TP-VP04-R-B), 1.5mm (TP-VP04-R-C), 2mm (TP-VP04-R-D), 3mm (TP-VP04-R-E)

Gelid Solutions’ thermal pads are created to provide an excellent thermal interface to transfer heat to heatsinks when installed on PCB with height differences and uneven surfaces such as DRAM ICs, VRM ICs, power MOSFETs, NVRAM ICs, and other high-temperature SMD components. Thanks to its enhanced multilayer matrix, superior material composition, and the ultimate 15W/mK thermal conductivity, the GP-Ultimate 120×20 offers the best performance in class.

The GP-Ultimate 120×20 is non-electrical conductive, non-corrosive, non-curing, non-toxic, and supports extended operating temperature range -60°C to 220°C. It features seamless application and has the thermal pad dimensions of 120x20mm to best fit enlarged surfaces of RAM Memory modules, GPU and CPU VRM circuits, M.2 Type SSD and other densely packed electronic devices.

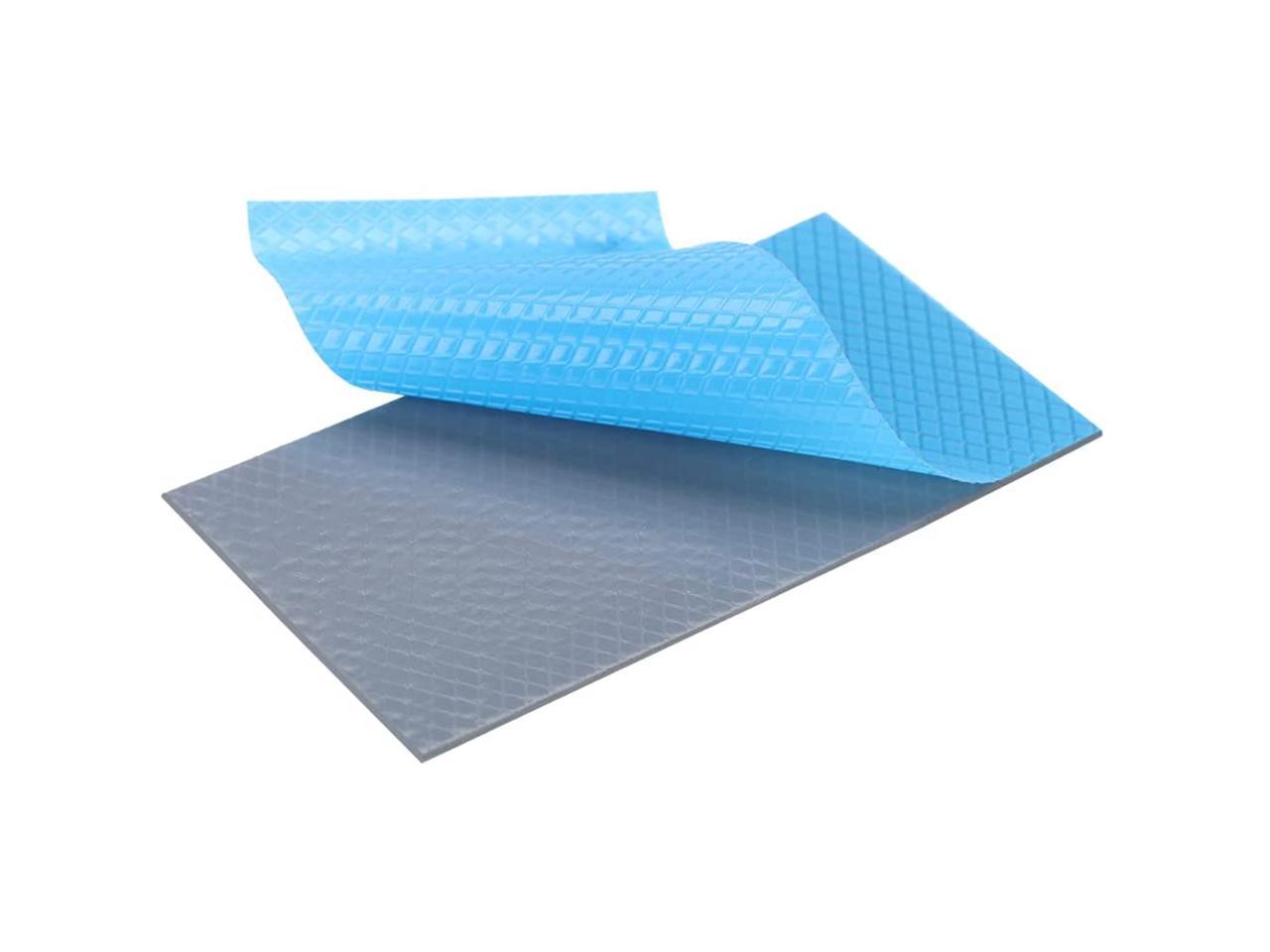

Please remove the protective films from both sides before application!

Once applied, the shape of the Thermal Pad becomes compressed and deformed, and it is non-reusable.
