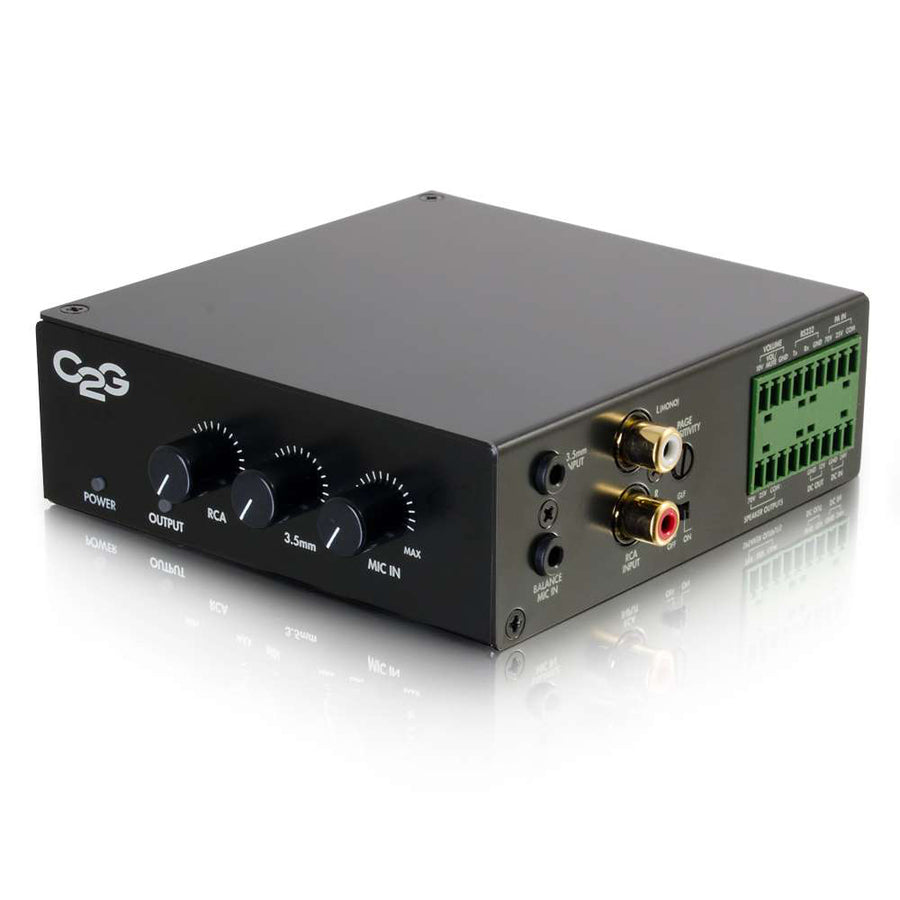

C2G 25/70V 50W Audio Amplifier - Plenum Rated

General Information

Manufacturer:   C2G
Manufacturer Part Number:   40881
Manufacturer Website Address:   www.cablestogo.com
Brand Name:   C2G
Product Name:   25/70V 50W Audio Amplifier - Plenum Rated
Marketing Information:   The 25/70V 50W Audio Amplifier is the ideal solution for supporting a distributed audio system in a classroom, conference room or other environment that requires installation in a plenum space. This amplifier supplies 50 Watts of power, 25 Watts per channel, and is built to an industry standard 25/70 Volt design. This amplifier supports many advanced features which make it a perfect fit for most applications
Product Type:   Signal Amplifier

Technical Information

Minimum Frequency:   100 Hz
Maximum Frequency:   20 kHz
Impedance:   18 Kilo Ohm

Power Description

Input Voltage:   230 V AC

Physical Characteristics

Product Color:   Black
Product Material:   Metal
Height:   1.5"
Width:   4.3"
Depth:   4.5"
Weight (Approximate):   3.63 lb

Miscellaneous

Additional Information:

• THD + Noise: < ±0.05% @ 1 KHz at nominal level (1 watt)
• Signal Noise: >80dB
• Input Sensitivity: -10dBV (316mV)
• Operating Temperature: 0 TO +50° C / 10% TO 90% RH, Non-condensing
• Storage Temperature: -25° TO +70° C / 10% TO 90% RH, Non-condensing

Environmentally Friendly:   Yes
Environmental Certification:   RoHS 2
Country of Origin:   Taiwan

Warranty

Limited Warranty:   1 Year
