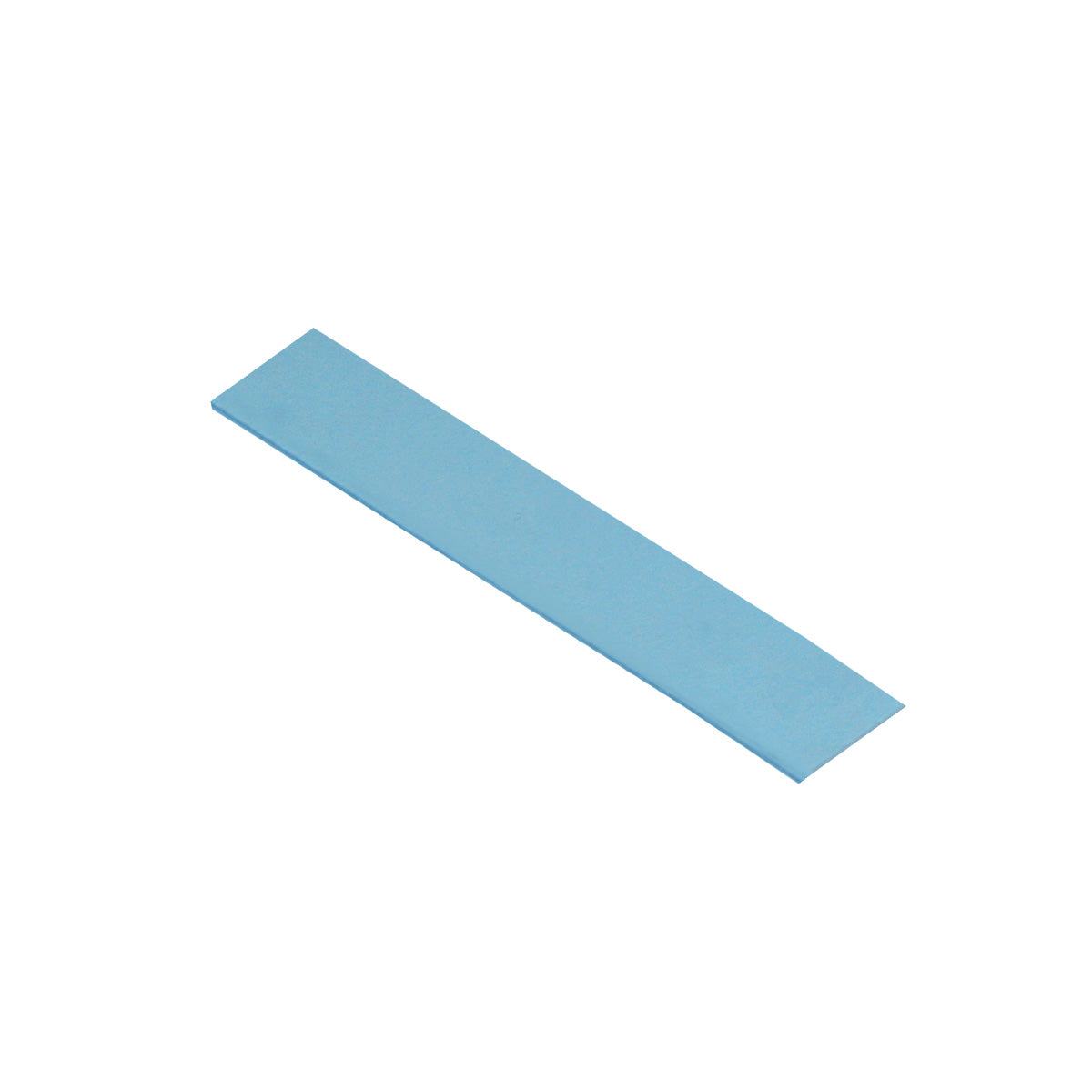

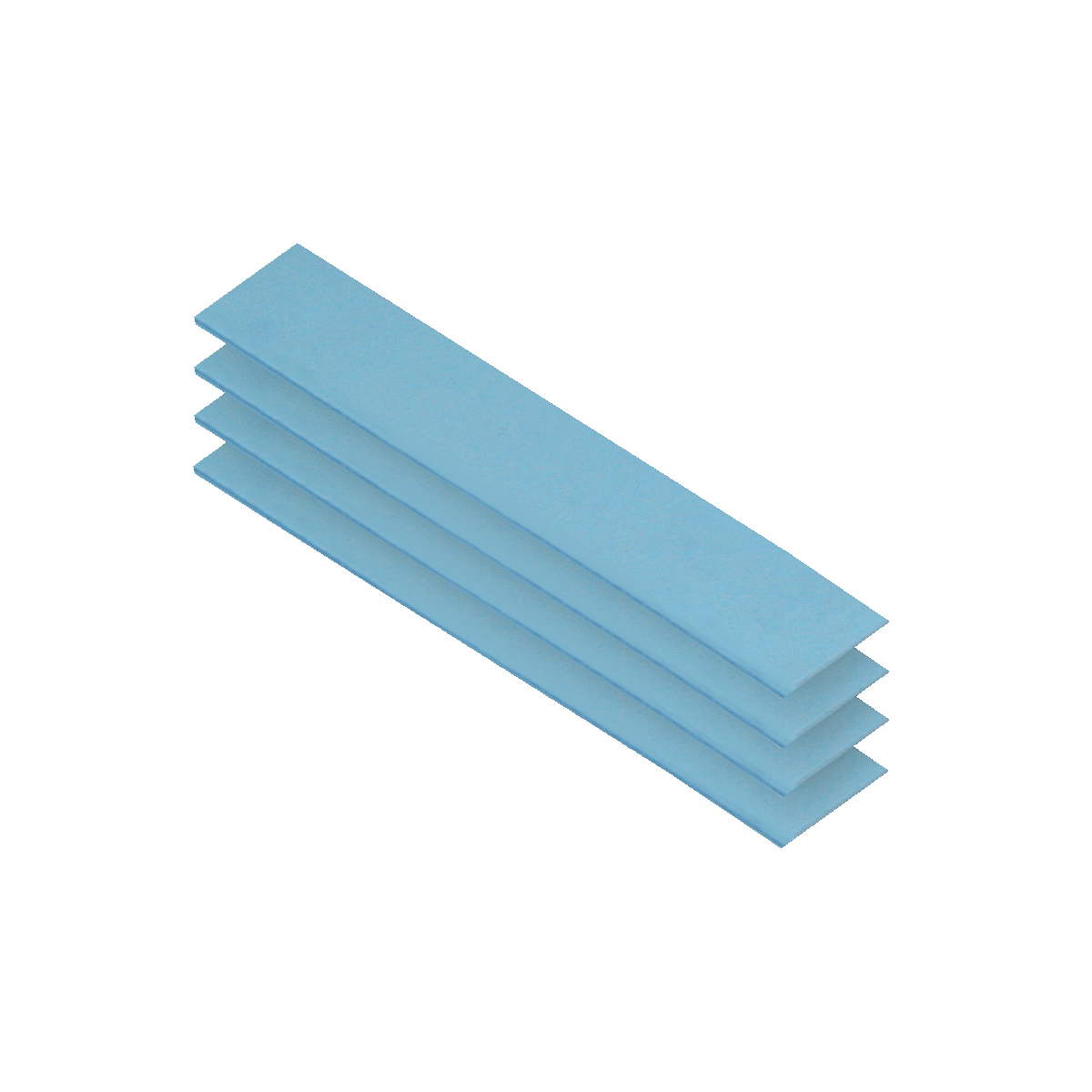

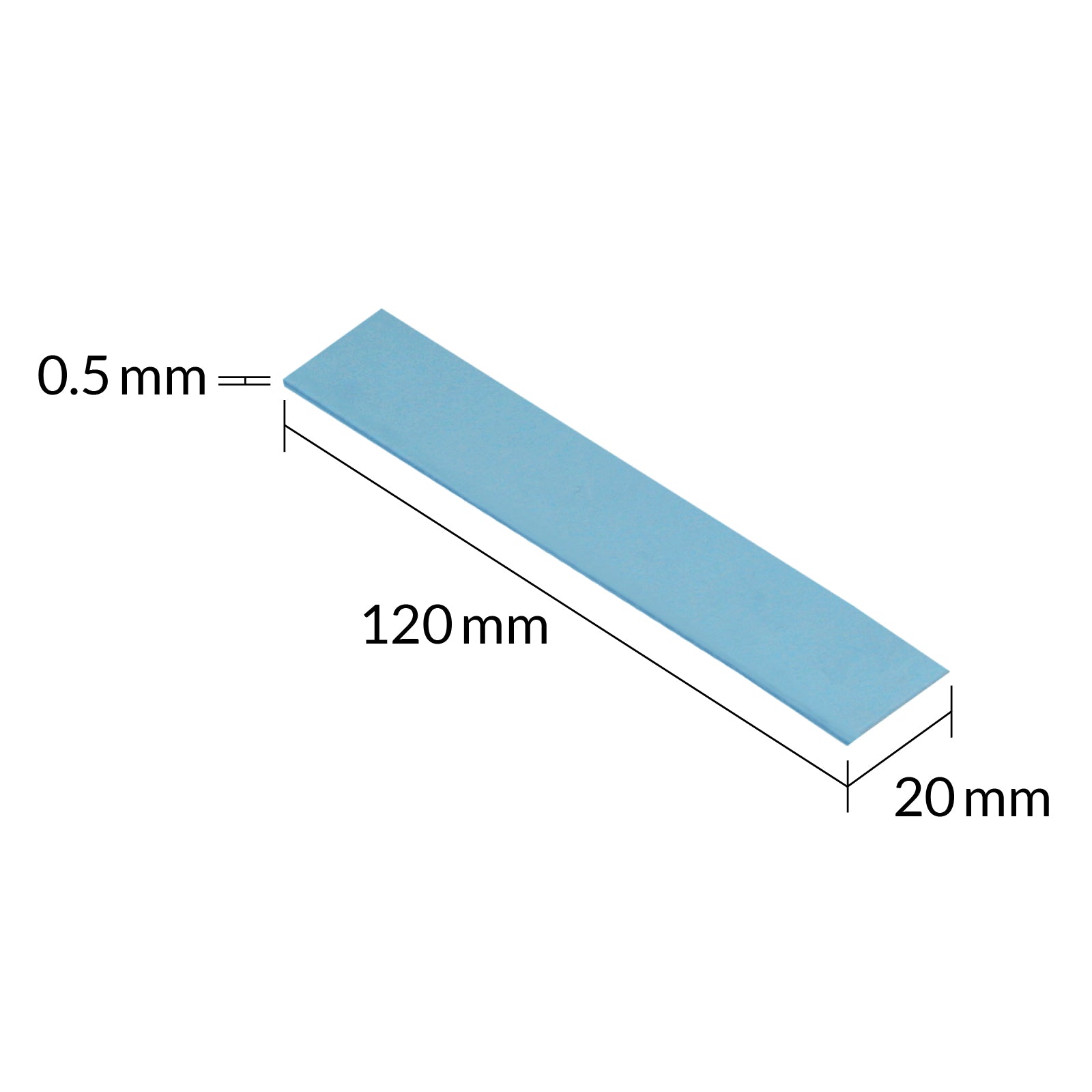

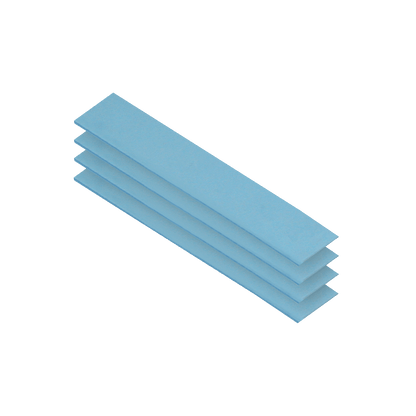

ARCTIC TP-3 Premium Performance Thermal Pad 120 x 20 x 0.5 mm (Stackable to 2.0 mm Without Performance Loss) 4 Pieces High Performance Particularly Soft Ideal Gap Filler Bridging Gaps Model ACTPD00055A
ARCTIC TP-3 Premium Performance Thermal Pad 120 x 20 x 0.5 mm (Stackable to 2.0 mm Without Performance Loss) 4 Pieces High Performance Particularly Soft Ideal Gap Filler Bridging Gaps Model ACTPD00055A
Couldn't load pickup availability
High Performance — Very Soft
Based on silicone and a special filler, TP-3 outperforms high-performance pads, especially when height differences of closely spaced chips typically occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness.
How is tested?
Minimization of Thermal Resistance
The thinner the pad, the lower the thermal resistance. The TP-3 pad with a thickness of 0.5 mm can easily be compressed to 0.3 mm and thus compensate for height differences between various components of up to 0.2 mm. Please note that due to the extremely low hardness, the installation of the 0.5 mm pad requires extra care. Please refer to the user manual.
Versatile Applications
Heat-conducting, vibration-damping, mouldable, electrically insulating — safe and easy to use. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components and at the same time a good heat conductor. In addition to the standard format for M.2, the TP-3 is available in various sizes and thicknesses, which can be easily cut to the desired shape and size. This makes it ideal for RAMs, chipsets, and ICs of all kinds, which are used in PCs, laptops, consoles, graphics cards, and electronic devices in general.
Safe Handling
The ARCTIC TP-3 is electrically insulating, non-adhesive, and easy to handle. This means that optimal and safe heat transfer can be ensured in many application areas.
Bridging Gaps
The TP-3 is softer than conventional pads and therefore particularly suitable for different chip heights and possible tolerances. Thanks to their good compressibility properties, the thermal pads act as the perfect gap filler and bridge uneven surface and air gaps without stressing sensitive and protruding components.
Available in Different Thicknesses and Sizes
Our thermal pads are available in a choice of 0.5 mm, 1.0 mm, and 1.5 mm. The 0.5 mm variant is ideally suited as an alternative to heat-conducting foil. The pads are available in different dimensions, depending on their thickness. If required, the pads can also be independently cut to any size.
Stackable without Performance Loss
The ARCTIC TP-3 thermal pads can be stacked particularly well due to their softness and low Interfacial Contact Resistance. This allows for flexible adaptation to various application requirements and the bridging of different thicknesses without compromising the efficiency of heat transfer. In contrast, harder pads often lose performance when stacked.
Product Name
ARCTIC TP-3 Thermal Pad – ACTPD00055A
Specifications
Brand: Arctic
Model: ACTPD00055A
Important Note
Please Note: Due to the extremely low hardness of thermally conductive pads, a more demanding installation is to be expected. Please refer to the User Manual for proper handling instructions
Features
Minimization of Thermal Resistance
The thinner the pad, the lower the thermal resistance. Thanks to its excellent compression properties, this very soft thermal pad ensures efficient heat conduction
High Performance
Formulated with silicone and a special filler, TP-3 outperforms even high-performance pads, especially when dealing with height differences between tightly spaced chips
Versatile Applications
Heat-conducting, vibration-damping, mouldable, and electrically insulating. The pad can be easily cut to size and is ideal for RAM, chipsets, ICs in PCs, laptops, consoles, and graphics cards
Safe Handling
Contains no metal particles, is electrically insulating and non-capacitive. It is safe to handle and poses no risk if it comes into contact with electrical components
