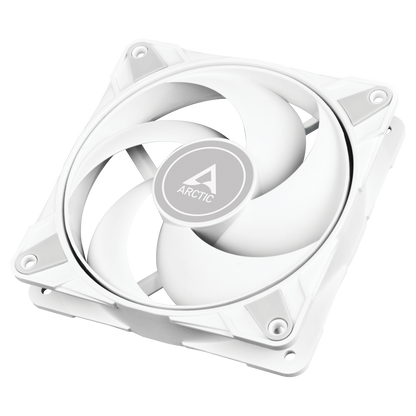

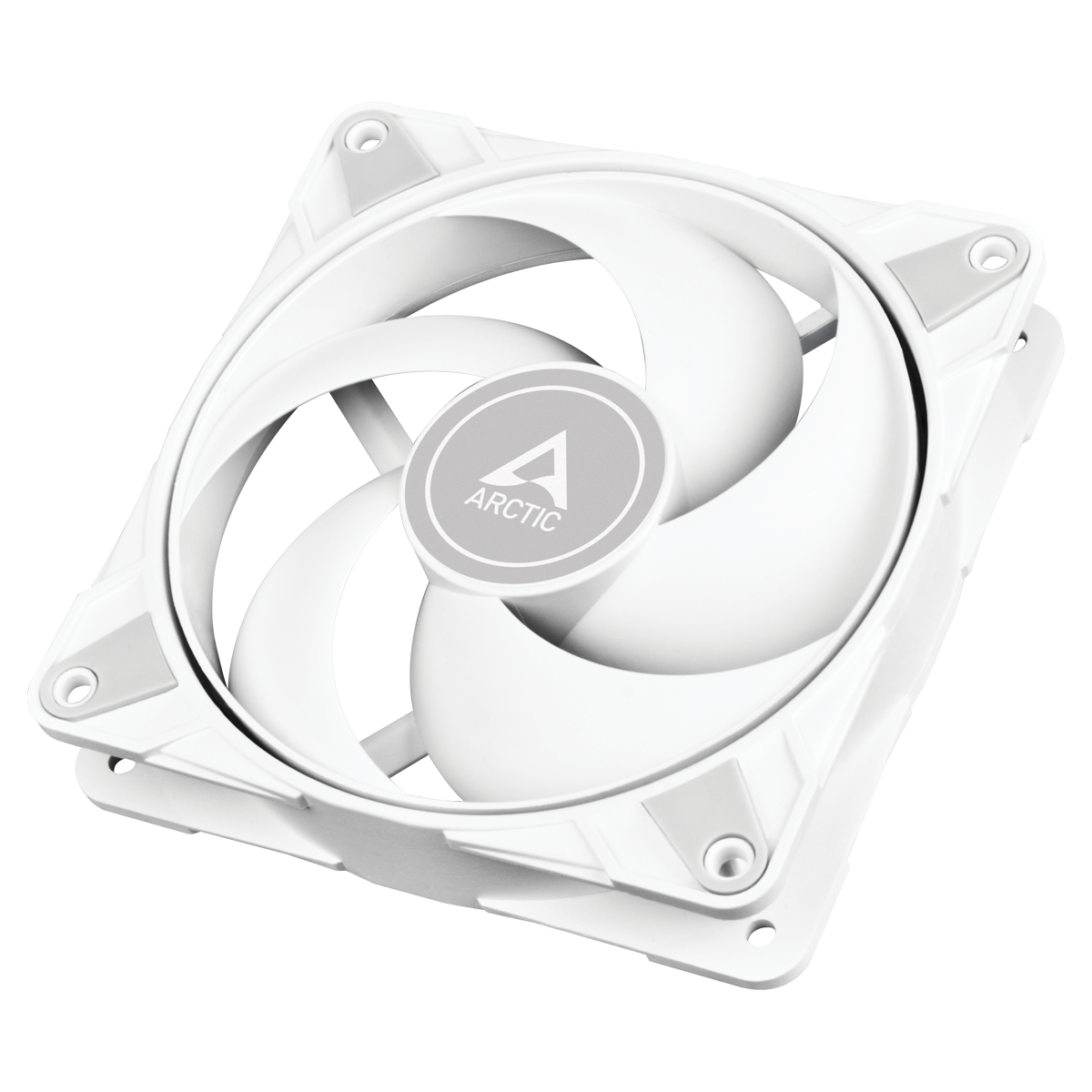

ARCTIC P12 Max PC Fan High-Performance 120mm Case Fan, PWM Controlled 200–3300 RPM Optimised for Static Pressure 0dB Mode Fluid Dynamic Bearing White Model ACFAN00293A
ARCTIC P12 Max PC Fan High-Performance 120mm Case Fan, PWM Controlled 200–3300 RPM Optimised for Static Pressure 0dB Mode Fluid Dynamic Bearing White Model ACFAN00293A
Couldn't load pickup availability
Virtually Silent due Fluid Dynamic Bearing
As a special feature, the P12 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although theese bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year warranty.
Extremely Wide Speed Range
The P12 Max features the controllable speed of an impressively wide range from 400 rpm up to 3300 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P12 Max provides a significant performance boost to existing air and water cooling solutions.
Maximum Performance - Without Compromises
The P12 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P12 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.
0dB Mode - Zero RPM
The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P12 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.
Improved Stability

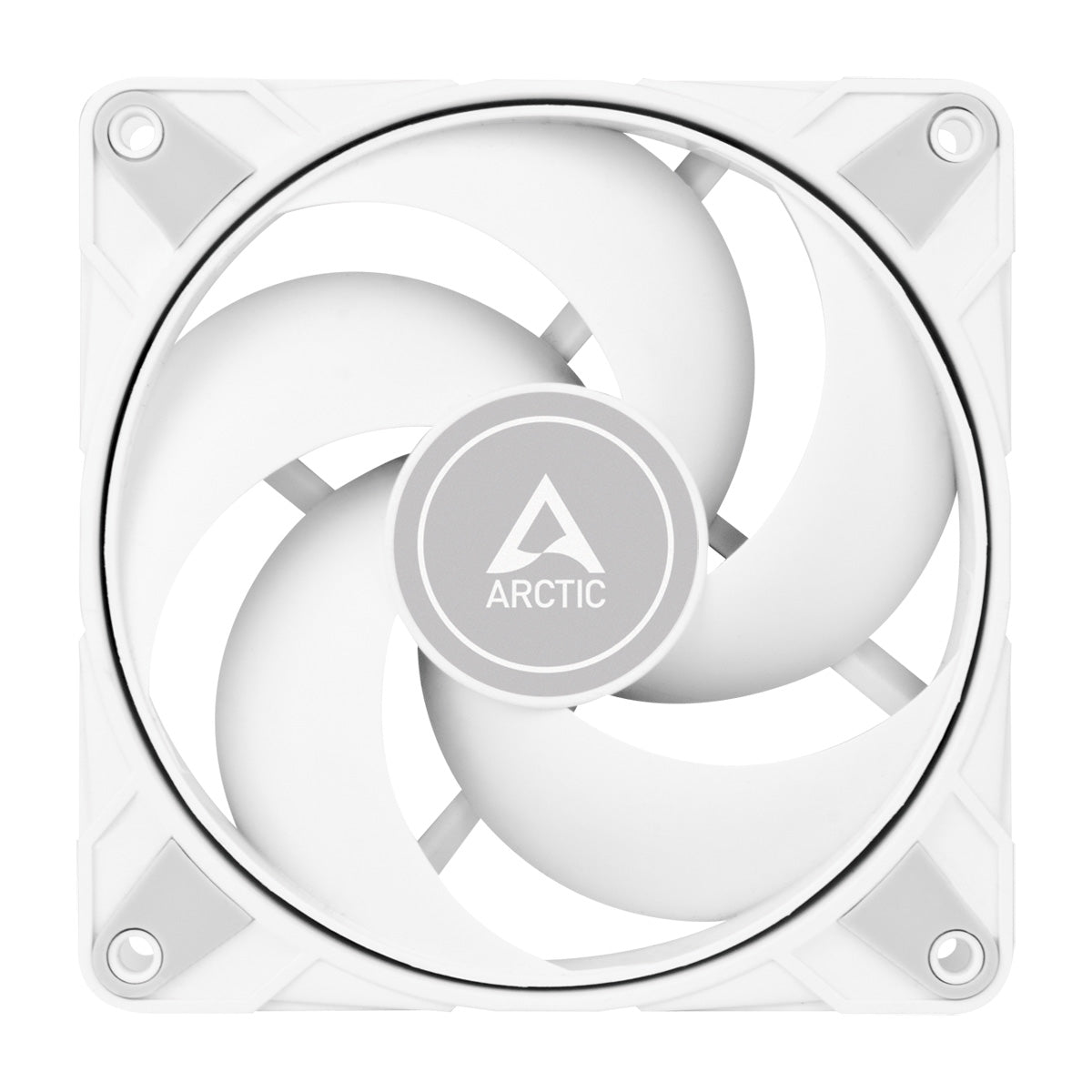

The P12 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compromise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.
Maximum Smoothness, Minimum Vibration
Due to a sinus-magnetizing, the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.
ARCTIC ACFAN00293A 120mm Case Fan – 4-Pin PWM
Key Features:
Brand: ARCTIC
Model: ACFAN00293A
Power Connector Type: 4-Pin
Voltage: 12 Volts
Wattage: 3.48 Watts
Cooling Method: Air
Compatible Devices: Desktop
Noise Level: 0.6 Sones
Material: Polycarbonate
Maximum Rotational Speed: 3300 RPM
Product Description:
The ARCTIC ACFAN00293A is a high-performance 120mm case fan engineered to deliver exceptional cooling efficiency for desktop systems. Built with a fluid dynamic bearing, it ensures long service life and silent operation at low speeds, while still offering powerful airflow at maximum RPM. Thanks to its high static pressure, the fan performs reliably even in high-resistance environments, making it ideal for use on heatsinks and radiators. The 4-pin connector enables PWM control, allowing the fan speed to adjust dynamically between 200 and 3300 RPM. Below 5% PWM, the fan remains completely still, ensuring energy efficiency and silent startup.
