ARCTIC Freezer 4U-M CPU Cooler for AMD socket SP3, Intel 4189/4677 direct touch technology, compatible Rackmount 4U Server case Dual 12cm Fan Model ACFRE00133B
ARCTIC Freezer 4U-M CPU Cooler for AMD socket SP3, Intel 4189/4677 direct touch technology, compatible Rackmount 4U Server case Dual 12cm Fan Model ACFRE00133B
Couldn't load pickup availability
Optional Ampere Mounting Kit
With the Ampere Mounting Kit, the Freezer 4U-M (Rev. 2) is compatible with the Ampere Altra LGA4926. Alternatively, a version of the product with an integrated kit is also available, the Freezer 4U-M Ampere.
Versatile Multi-Compatible Server Cooler
The Freezer 4U-M Rev. 2 is compatible with a wide range of Intel and AMD server processors, including Intel sockets LGA4189 and LGA4677, as well as AMD sockets SP6, sTR5, SP3, TR4, sTRX4, and sWRX8. With a power consumption of only 2.88 watts while delivering high cooling performance, it emphasizes energy efficiency and is ideal for cooling high-performance processors with up to 64 cores and a TDP of up to 350 watts.
RAM Compatibility and Clearance
The Freezer 4U-M Rev. 2 offers a generous 53 mm of clearance for memory, allowing the use of RAM modules with moderate heatsinks. This space facilitates efficient airflow and ensures compatibility with various types of RAM.
Compact Design and Dual Socket Compatibility

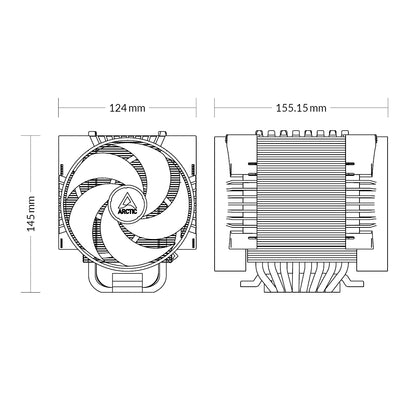

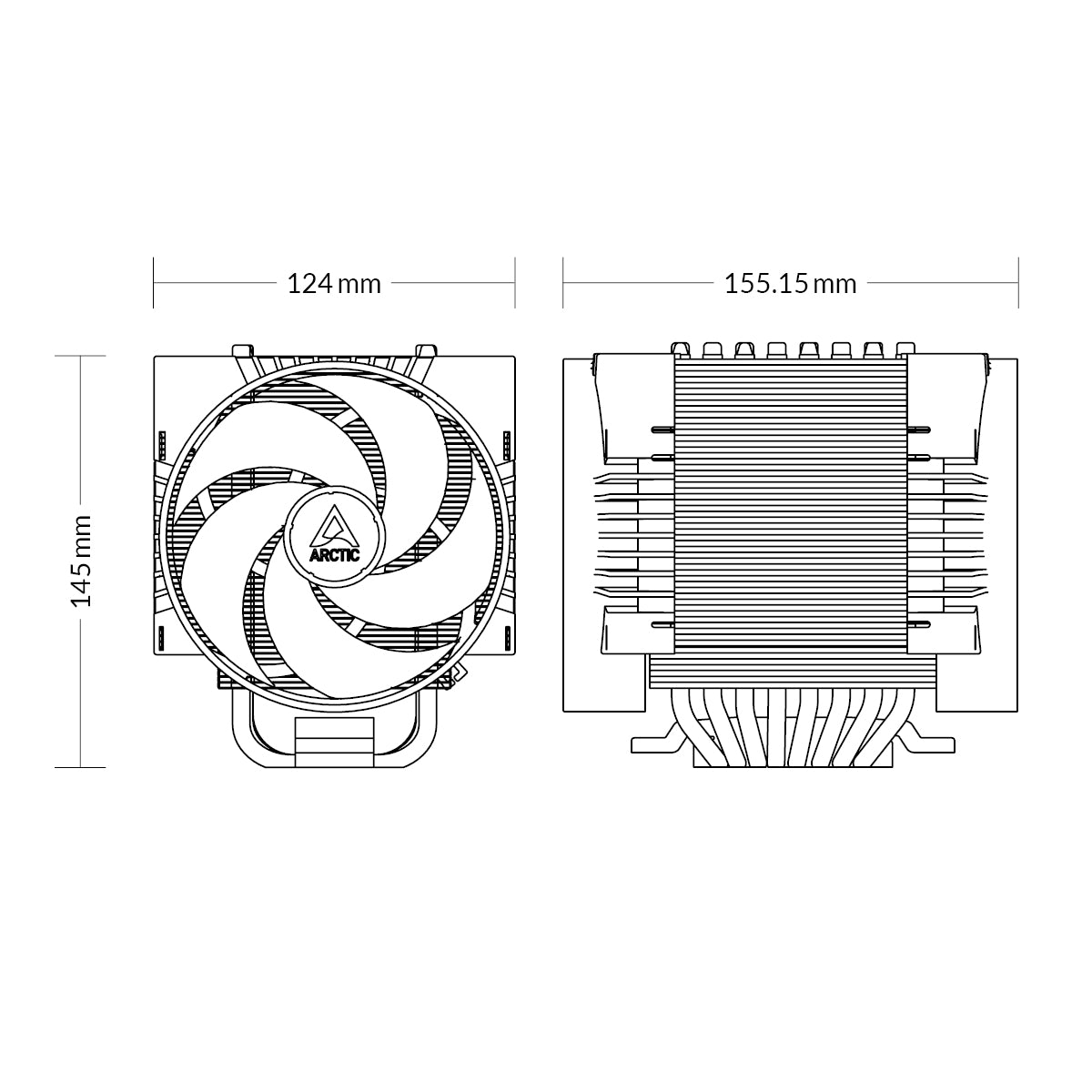

With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U-M Rev. 2 features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.
Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M Rev. 2's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.
Designed for continuous operation
Both fans of the Freezer 4U-M Rev. 2 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.
Premium Thermal Paste Included
The Freezer 4U-M Rev. 2 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
ARCTIC Freezer 4U-M Rev. 2 CPU Cooler – ACFRE00133B
Key Features:
Brand: ARCTIC
Model: ACFRE00133B
Product Type: CPU Cooler
Product Material: Aluminum
Compatible Product Models:
Intel: LGA 4189, LGA 4677
AMD: SP6, sTR5, SP3, TR4, sTRX4, sWRX8
Ampere: LGA4926
For Use With: Intel LGA 4189, LGA 4677; AMD SP6, sTR5, SP3, TR4, sTRX4, sWRX8; Ampere LGA4926
Dimensions: 211 (L) x 160 (W) x 141 (H) mm
Width: 211 mm
Depth: 160 mm
Height: 141 mm
Weight: 1548 g
Special Feature: Compact design, dual socket compatibility, powerful fans in push-pull configuration, RAM compatibility and clearance
What's Included: Freezer 4U-M Rev. 2
Product Description:
The ARCTIC Freezer 4U-M Rev. 2 is a powerful and versatile server cooler designed for high-performance cooling in multi-socket configurations. With an expanded contact surface and an upgraded mounting mechanism, it provides reliable cooling across a wide range of Intel and AMD server processors, including Intel's LGA 4189 and LGA 4677, as well as AMD's SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets. The cooler is also compatible with the Ampere Altra LGA4926.
Despite its high-efficiency design, the Freezer 4U-M Rev. 2 only consumes 2.88 watts of power, ensuring energy efficiency while providing superior cooling performance. This cooler can handle processors with up to 64 cores and a TDP of up to 350 watts, making it suitable for even the most demanding server applications. The cooler is also equipped with powerful fans arranged in a push-pull configuration, ensuring optimal airflow and cooling, while maintaining RAM compatibility and clearance.
